Smith Machine Seated Calf Raise
What Is the Smith Machine Seated Calf Raise?

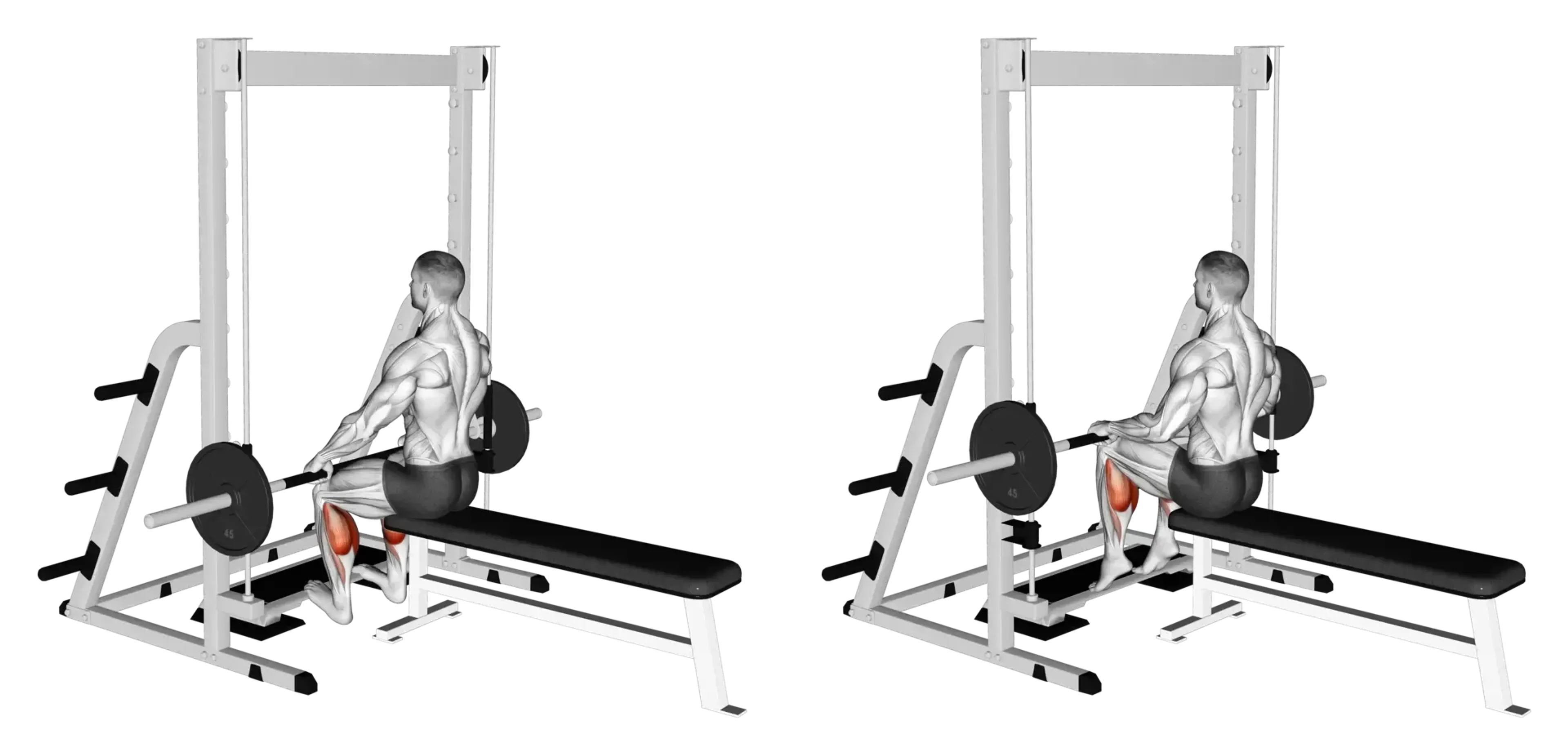

Smith Machine Seated Calf Raise is an isolation exercise that primarily targets the calves, with most of the work going to the soleus. It is a beginner-level movement performed sitting on the end of a bench inside a Smith machine, with the bar resting across the lower thighs just above the knees while the heels lift off the floor.
The bent knee is what makes this a soleus exercise. The gastrocnemius crosses both the knee and the ankle, so with the knee bent to about 90 degrees it starts out shortened and contributes less force, leaving the soleus, which crosses only the ankle, to do most of the lifting. The gastrocnemius still works, just to a smaller degree, so the seated raise shifts the emphasis rather than isolating the soleus completely.
A strong soleus matters well beyond appearance. It supplies a large share of the push-off and support force in walking and running and is the main muscle feeding load into the Achilles tendon, which is why runners and field-sport athletes often include bent-knee calf raises in their strength work. The Smith machine version is a practical choice in gyms without a dedicated Machine Seated Calf Raise: the guided bar path keeps the load steady over the knees, plates are easy to add, and the safety stops catch the bar if the feet slip. With the feet on the floor the heels cannot drop below the toes, so placing the balls of the feet on a calf block or weight plate adds range at the bottom.
The movement suits beginners and experienced lifters alike, and it usually sits near the end of a leg session alongside a straight-knee raise such as the Smith Machine Calf Raise. Anyone not yet ready for a loaded bar can start with the Bodyweight Single Leg Bent Knee Calf Raise or the Dumbbell Seated Calf Raise before moving to the Smith machine.
Muscles Worked
- Soleus
- Primary
- Peroneus Longus
- Medium
Instructions
- Place a flat bench inside the Smith machine so that, sitting on its end, your knees are directly under the bar.
- Set the bar at about knee height and set the safety stops just below the bar's lowest point with your heels down.
- Sit on the end of the bench with your feet hip-width apart on the floor, directly under your knees, and your knees bent to about 90 degrees.
- Rest the bar across your lower thighs a few inches above the knees, using a bar pad or folded towel if needed, and hold it with both hands just outside your thighs.
- Rise onto the balls of your feet to lift the bar slightly, then rotate it to unhook it from the rack.
- Lower your heels slowly until they are close to the floor and you feel a stretch in your lower calves.
- Push through the balls of your feet and raise your heels as high as possible, pausing briefly to squeeze at the top.
- Lower your heels with control over about 2 seconds, pausing at the bottom without bouncing.
- Repeat for the desired number of repetitions, then rise onto your toes and rotate the bar back onto the hooks.
Common Mistakes
Not Using Full Range of Motion
Not lowering your heels fully during the descent reduces the effectiveness of the exercise and can prevent proper calf activation.
Bouncing or Jerking Movements
Using momentum to perform the exercise rather than a slow, controlled movement can increase the risk of injury and reduce muscle engagement.
Pushing the Bar With the Arms
Pressing up on the bar with your hands takes load off the calves, so the hands should only steady the bar.
Resting the Bar on the Kneecaps
Placing the bar directly on the kneecaps is painful and unstable, so keep it on the lower thighs a few inches above the knees.
Rolling Onto the Outer Edges of the Feet
Letting the ankles roll outward as the heels rise shifts pressure toward the little toes, so push evenly through the big-toe side of each foot.
Injuries
Smith Machine Seated Calf Raise is a low risk exercise when performed with proper technique. The load sits on the thighs rather than the spine, the bar travels on fixed rails, and the range of motion is short, so serious injuries are rare.
The structures under the most strain are the Achilles tendon and the soleus itself. Bouncing out of the bottom position or dropping the heels quickly under a heavy bar loads the tendon abruptly, and bent-knee raises place much of their tendon strain on the mid-portion of the Achilles, an area where tendinopathy often develops. The bar can also press uncomfortably into the lower thighs or kneecaps, so rest it a few inches above the knees with a bar pad or folded towel, and set the safety stops just below the bar's lowest point so it cannot fall if a foot slips. To prevent injuries, it's important to use a moderate weight that allows you to control the movement throughout the exercise. Avoid bouncing or using momentum to lift the weight, and focus on smooth, controlled reps.
To regress, use a lighter load, shorten the range so the heels stop above the floor, or switch to the Dumbbell Seated Calf Raise. To progress, add load gradually, place the balls of the feet on a calf block for a deeper stretch, or add a pause at the top of each rep. Stop the set if you feel sharp pain in the Achilles tendon, heel or calf, or a sudden pulling sensation in the calf, and see a healthcare professional if pain persists or returns with every session.
- Primary Focus
- Calves
- Equipment
- Smith machine and bench
- Modality
- Strength
- Difficulty
- Beginner
Alternative Exercises
Frequently Asked Questions
- Q: Is the seated calf raise enough to build the calves?
Not on its own. In a 12-week study of untrained adults, seated calf raises on a machine with the knee bent to 90 degrees grew the soleus about as much as standing calf raises did, but produced no significant gastrocnemius growth, while the standing leg's gastrocnemius grew by roughly 9 to 12 percent. Pair this exercise with a straight-knee raise such as the Smith Machine Calf Raise.
- Q: Do I need a block under my feet?
No, the exercise works with the feet flat on the floor, but the heels can then only drop until they touch the ground. Placing the balls of your feet on a calf block or a weight plate lets the heels sink below the toes for a deeper stretch, as long as the block cannot slide.
- Q: How do I stop the bar from hurting my thighs?
Wrap a bar pad or folded towel around the middle of the bar and rest it on the lower thighs a few inches above the knees, not on the kneecaps. Keeping the feet directly under the knees also keeps the bar sitting level.
- Q: Can I perform this exercise with a heavy weight?
Yes, as long as you can still lower the heels fully, pause briefly at the bottom without bouncing and rise all the way to the top on every rep. If the reps shrink to a few inches of movement, the weight is too heavy.
- Q: What is the best rep range for the Smith Machine Seated Calf Raise?
For building calf muscle, it's recommended to perform 3 to 4 sets of 12 to 15 reps with moderate weight. Adjust the weight and rep range depending on your training goals.
