Is the Smith machine squat good for beginners?

Yes, it provides added support and helps build confidence with the squat movement.

Can I replace barbell squats with Smith machine squats?

They can stand in for them in a leg-building program, but each set asks less of some leg muscles. In a small study of six healthy lifters, each squatting their own eight-rep max both ways, three leg muscles were more active in the free-weight squat, by 49% in the vastus medialis, 34% in the calf, and 26% in the hamstrings, while the other muscles measured, including the lower back and abdominals, showed no significant difference. If you need to squat a free bar or play a sport, keep some free-weight squats in your program.

Where should my feet be when doing Smith machine squats?

Start with your feet under the bar or a few inches in front of it, wherever your heels stay flat and your lower back stays neutral at the bottom. A biomechanical model of the Smith squat showed that, at the same knee angle, moving the feet further in front of the knees raises the load on the hips and lower back while lowering knee torque and the compression inside the knee, and bringing them back toward the bar does the reverse.

Is it OK for my knees to go past my toes?

Yes, some forward knee travel is normal and is what lets your torso stay upright under a vertical bar path. Moving your feet forward to stop it lowers the load on the knees but shifts it to the hips and lower back, so treat foot position as a choice of emphasis rather than a safety rule.

How deep should I squat on a Smith machine?

Go as deep as you can while your heels stay flat and your lower back stays neutral, which for most people means thighs at parallel or below. Set the safety stops just under that depth so the bar cannot travel lower than you can control.

How much does the Smith machine bar weigh?

It depends on the machine. Many Smith bars are counterbalanced, so the starting weight is often less than a standard 45 lb (20 kg) barbell; check the label or the manufacturer's specs, log the same figure every time, and expect your numbers not to carry over exactly to another machine or to a free barbell.

Smith Machine Squat

What Is the Smith Machine Squat?

Smith Machine Squat is a compound exercise that primarily targets the quadriceps and glutes and also engages the adductors, hamstrings, and lower back. It is a beginner-level movement in which the barbell runs on fixed vertical rails, so you do not have to balance it and can rack it at any point in the rep by rotating it onto the hooks.

It is popular in gyms because the machine provides stability, allowing users to focus more on form and muscle engagement without worrying about balancing the bar. It is mainly a leg size and strength exercise, and it suits beginners learning to handle a loaded squat, lifters training without a spotter who want to push their sets hard with the safety stops set, and leg sessions that follow a free-weight squat with a second quad and glute movement.

Because the bar can only travel straight up and down, foot position changes the work more than it does in a free squat. With the feet close to under the bar, the knees travel further forward and the quadriceps do more of the work; with the feet set further in front, more of the load moves to the hips and lower back. A wider stance brings in more of the adductors, which the Smith Machine Sumo Squat takes further. The Hack Squat is the other fixed-path squat, but there the back rests against a pad instead of holding the bar, so the trunk does far less.

Despite its benefits, the fixed path of the Smith machine limits natural movement patterns. With a free barbell, your feet, hips, and trunk keep the bar balanced over the middle of the foot; on the rails the machine does that job, so the Smith squat builds the legs without training the balance a free squat needs. If you plan to squat a free bar or need the strength for sport, keep Barbell Squat or Dumbbell Goblet Squat work in your program, and if you cannot yet squat to parallel with control, start with the Bodyweight Squat.

Muscles Worked

MuscleActivation

Gluteus Maximus: Primary
Vastus Lateralis: Primary
Vastus Medialis: Primary
Rectus Femoris: High
Adductor Magnus: Medium
Biceps Femoris: Medium
Erector Spinae: Medium
Semitendinosus: Medium
Gluteus Medius: Low
Gastrocnemius (Lateral Head): Minimal
Gastrocnemius (Medial Head): Minimal
Soleus: Minimal

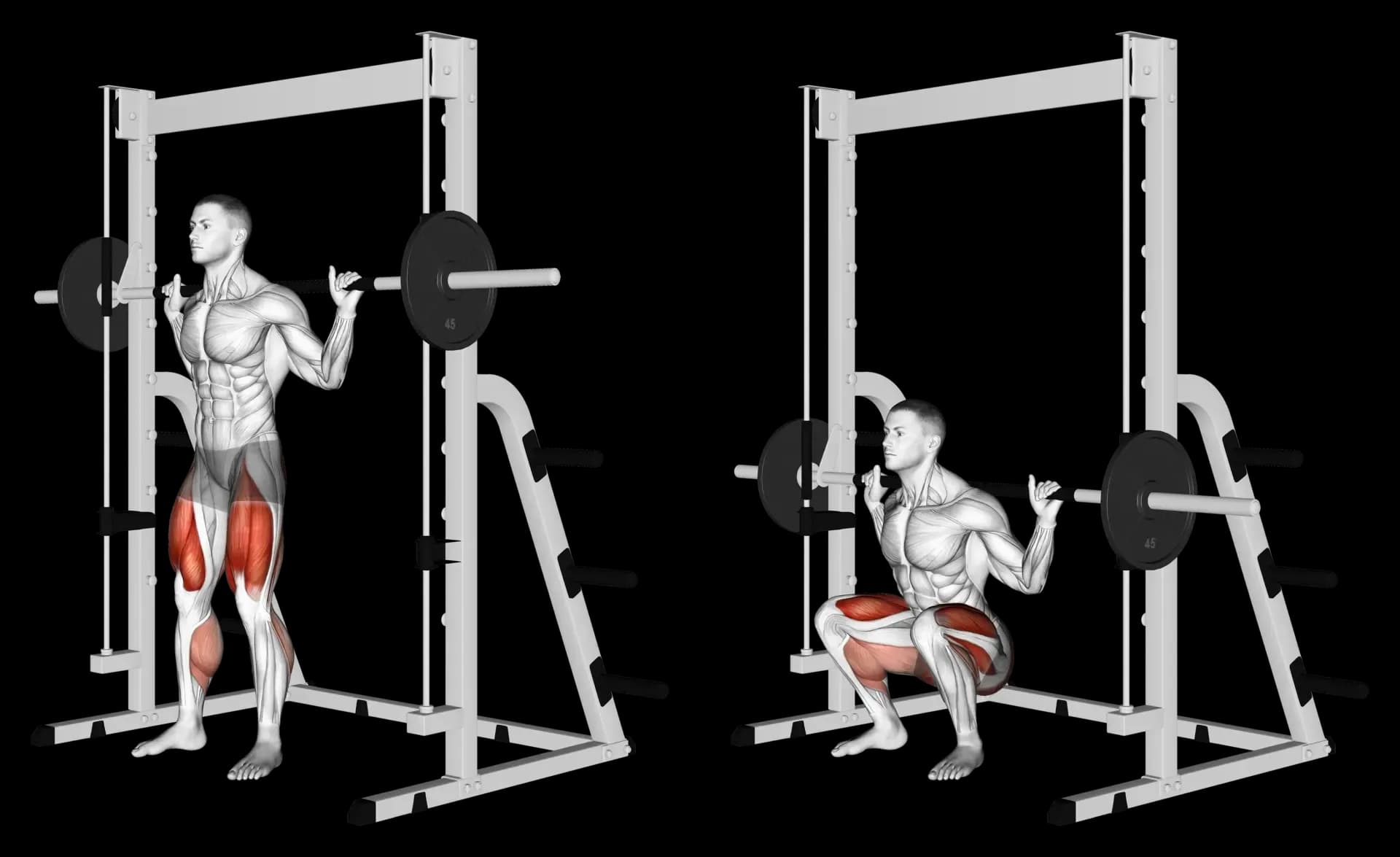

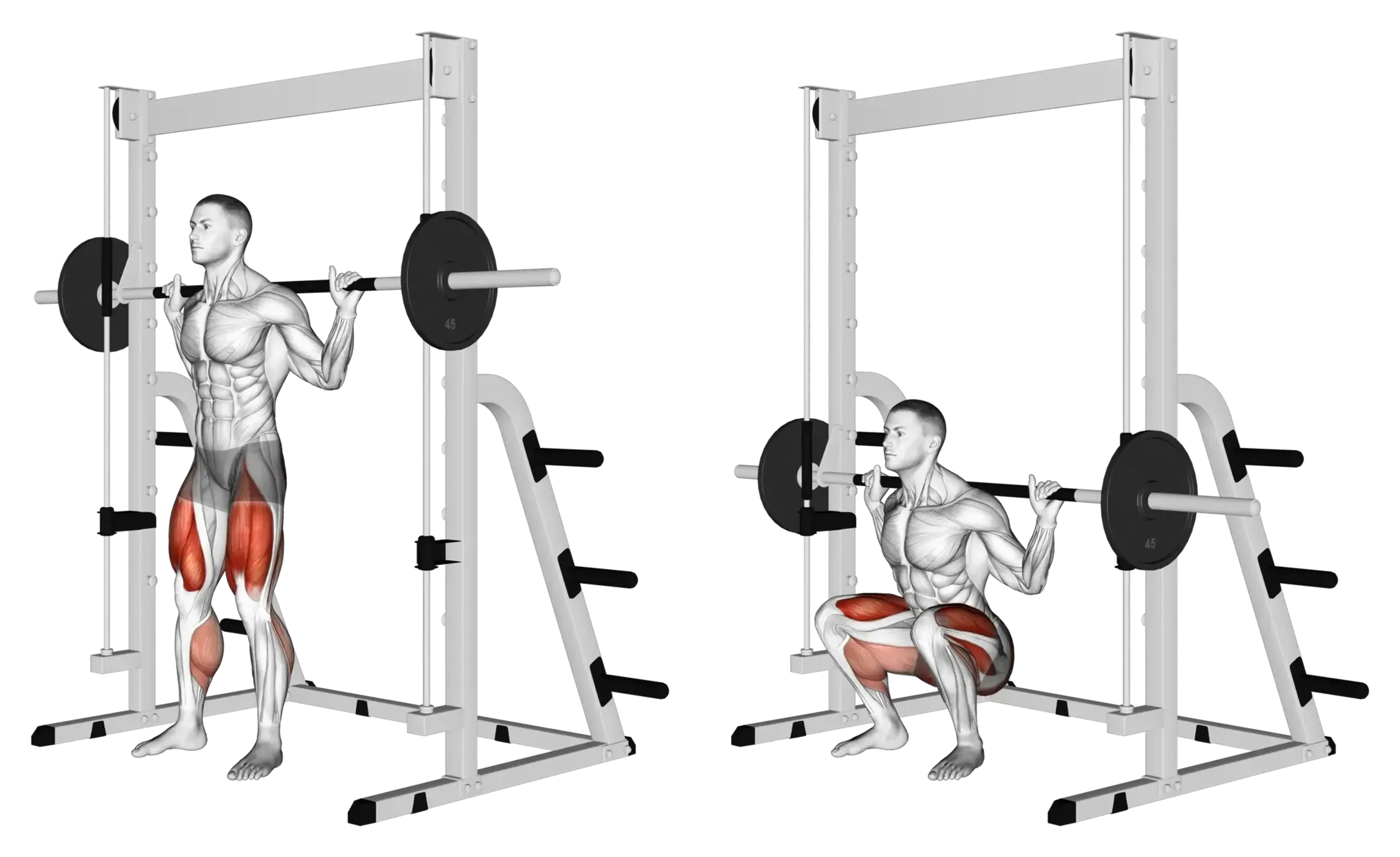

Instructions

Set the bar hooks just below shoulder height and the safety stops just below your lowest squat depth.
Step under the bar and rest it across your upper traps, not your neck, with an overhand grip just outside your shoulders.
Set your feet about shoulder-width apart, toes turned slightly out, under the bar or slightly in front of it.
Straighten your legs to take the weight, then rotate the bar back to unhook it.
Brace your core and descend by bending at the hips and knees together, letting your knees travel forward in line with your toes.
Lower until your thighs are at least parallel to the floor, or deeper if your heels stay flat and your lower back stays neutral.
Drive through your whole foot to stand back up, fully extending your hips and knees.
Repeat for the desired number of reps, then rotate the bar forward to re-rack it on the hooks.

Common Mistakes

Skipping the safety stops
Squatting without the stops set just below your deepest point leaves you pinned under the bar if you fail a rep.
Feet set too far forward
Walking the feet far out in front makes you lean back into the bar and lets the pelvis tuck under at the bottom, which shifts strain to the lower back.
Leaning too far forward
This shifts tension away from the legs and increases lower back strain.
Knees caving inward
Letting the knees drift in as you descend or stand up pulls them out of line with the toes and strains the knee joint.
Going too deep too soon
Squatting below your mobility range causes rounding of the back and loss of control.
Not engaging the core
Failing to brace the core reduces stability and increases the risk of lower back strain.

Injuries

Smith Machine Squat is a low risk exercise when performed with proper technique. The rails remove the risk of losing the bar forward or backward, and safety stops set just below your deepest point catch any rep you cannot finish. Without the stops, a failed rep leaves you pinned under a bar that cannot be dumped, so set them every time.

The knees and lower back take most of the strain. Because the bar cannot drift to meet your body, a poor foot position forces your body to fit the bar path: feet too far back push the heels up and pitch the torso forward, while feet too far forward make you lean back into the bar and let the pelvis tuck under at the bottom, which loads the lower back. Knees caving inward and squatting deeper than your hip and ankle mobility allow are the other common causes of knee and back discomfort. Some users may also experience shoulder or neck discomfort if the bar is placed too high or on the spine.

To prevent injuries, set your feet where your heels stay flat and your back stays neutral at the bottom, keep your knees tracking in line with your toes, and stop each rep at the depth you can control. Always start with lighter weight to learn the proper movement pattern before increasing the load. If a loaded squat is too much, regress to the Bodyweight Squat or the Machine Leg Press, which supports the back. Once the pattern is solid, the Barbell Squat adds the balance challenge the rails remove.

Stop the set if you feel sharp pain in the knees, hips, or lower back, or pain or tingling that travels down a leg.

Overview

Primary Focus: Glutes and quads
Equipment: Smith machine
Modality: Strength
Difficulty: Beginner

Alternative Exercises

Other Names for the Smith Machine Squat

The Smith Machine Squat is also known as:

Smith Machine Back Squat

Frequently Asked Questions

Q: Is the Smith machine squat good for beginners?: Yes, it provides added support and helps build confidence with the squat movement.
Q: Can I replace barbell squats with Smith machine squats?: They can stand in for them in a leg-building program, but each set asks less of some leg muscles. In a small study of six healthy lifters, each squatting their own eight-rep max both ways, three leg muscles were more active in the free-weight squat, by 49% in the vastus medialis, 34% in the calf, and 26% in the hamstrings, while the other muscles measured, including the lower back and abdominals, showed no significant difference. If you need to squat a free bar or play a sport, keep some free-weight squats in your program.
Q: Where should my feet be when doing Smith machine squats?: Start with your feet under the bar or a few inches in front of it, wherever your heels stay flat and your lower back stays neutral at the bottom. A biomechanical model of the Smith squat showed that, at the same knee angle, moving the feet further in front of the knees raises the load on the hips and lower back while lowering knee torque and the compression inside the knee, and bringing them back toward the bar does the reverse.
Q: Is it OK for my knees to go past my toes?: Yes, some forward knee travel is normal and is what lets your torso stay upright under a vertical bar path. Moving your feet forward to stop it lowers the load on the knees but shifts it to the hips and lower back, so treat foot position as a choice of emphasis rather than a safety rule.
Q: How deep should I squat on a Smith machine?: Go as deep as you can while your heels stay flat and your lower back stays neutral, which for most people means thighs at parallel or below. Set the safety stops just under that depth so the bar cannot travel lower than you can control.
Q: How much does the Smith machine bar weigh?: It depends on the machine. Many Smith bars are counterbalanced, so the starting weight is often less than a standard 45 lb (20 kg) barbell; check the label or the manufacturer's specs, log the same figure every time, and expect your numbers not to carry over exactly to another machine or to a free barbell.
